30-pin SIMM Extender
Extend a 30pin SIMM to the length of a 72pin SIMM
Links
- OnShape Model
- ThingiVerse Page (STL file downloads available)
Details

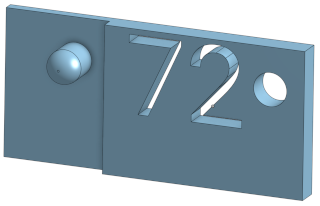

A simple extender which makes the length of 30pin SIMMS the same as a 72pin SIMM. Clearly, this won’t make 30pin SIMMs work as a 72pin SIMM, but I created it so I could mix 72 and 30pin SIMMs in the same tray.
There’s a couple of standard heights already available as STLs, but the model is very configurable if you need something else.
As the model is intended to fit snugly, there’s little room for tolerance so I’d recommend printing in high quality, eg a layer height of 0.16 or better and a slow print speed like 50mm/s.
